45# Light Steel Stud Roll Forming Machine Metal Roll Forming Machine, IBR Roll Forming Machine

Quick Detail:

1. Thickness : 0.15-0.2mm
2. Material : embossed galvanized steel/ aluminum-zinc sheets
3. Input width : 750mm
4. Effective width: 600mm
5. Material weight: 5MT cap.
6. Coil inner diameter : 508mm
7. Driven way: by driven motor
8. Cutting way: by hydraulic power pack
9. Cutting tolerance : ±1mm

Machine list:

1. Hydraulic De-coiler with breaking device
2. Roll former
3. Hydraulic cutting device
4. Run out table
5. Siemens PLC and IOP/ touch screen, Shihlin brand inverter

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler with coil car

Please refer to the item for details

• Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control, to cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, 3 units

Features of IBR sheet roll forming machine:

IBR sheet roll forming machine is a common roof sheet roll forming machine, but the finished products are used mainly in South African market.

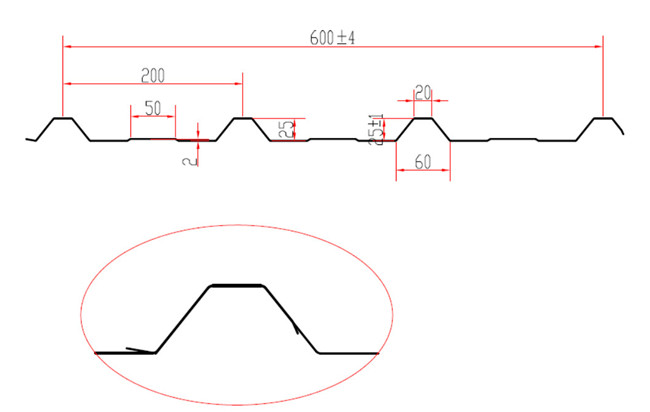

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
