    Full Automatic Roof Gutter Roll Forming Machine With 12 Months Warranty

    Ask Lasest Price
    Brand Name : NKH MACHINERY
    Model Number : YX130 Gutter
    Certification : CE/SONCAP/CSA
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5 UNITS/MONTH
    Delivery Time : 40 WORKING DAYS
    • Product Details
    • Company Profile

    Full Automatic Roof Gutter Roll Forming Machine With 12 Months Warranty

    Full Automatic Roof Gutter Roll Forming Machine With 12 Months Warranty

    1. Product Application

    This machine takes GI/PPGI as raw material, through a series steps and can produce the gutter sheets.

    The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

    2. Working Flow:

    Decoiler-------Feeding-------Roll forming-------Cutting------Finished product


    3. Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.


    4. Technical parameters:

    Raw material
    material specsheet, galvanized steel sheet, aluminum sheet
    Input widthTBC
    thickness of coil sheet0.5-0.7mm
    Machine details
    roller materialhigh grade NO. 45 forged steel with hard chrome plating
    shaft materialhigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft75mm or as your requirement
    main frame450 H steel
    forming steps18 rows
    productivity20-25 m/min
    hydraulic station power7.5KW
    hydraulic pressure10-12MPa
    controlling systemfamous PLC computer control
    material of cutting tableCr12 mould steel with quenched treatment

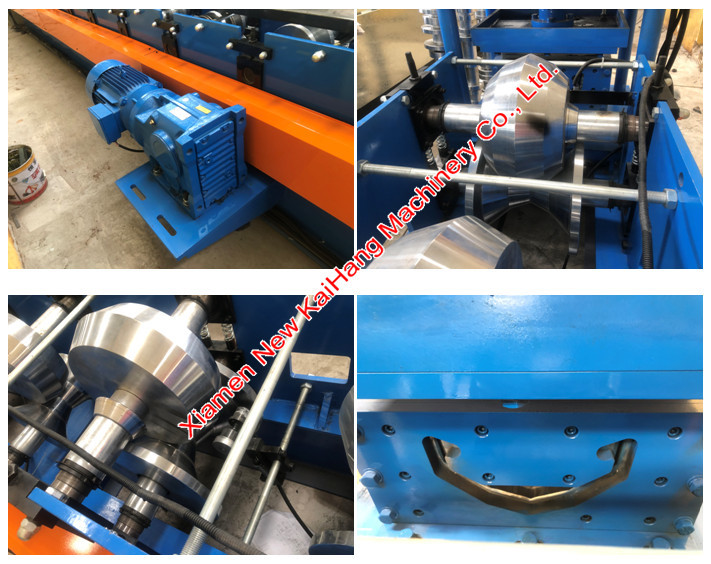

    5. Machine picture


    Full Automatic Roof Gutter Roll Forming Machine With 12 Months WarrantyFull Automatic Roof Gutter Roll Forming Machine With 12 Months WarrantyFull Automatic Roof Gutter Roll Forming Machine With 12 Months Warranty
