    PPGI G550 G350 water tank rolled/curved Rolling Machine 45# Steel, Computer Corrugated Sheet Roll Forming Machine

    Ask Lasest Price
    Brand Name : NKH MACHINERY
    Model Number : YX15.6-76.-1066.8
    Certification : CE/SONCAP/CSA
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 3 UNITS/MONTH
    Delivery Time : 50 WORKING DAYS
    • Product Details
    • Company Profile

    PPGI G550 G350 water tank rolled/curved Rolling Machine 45# Steel, Computer Corrugated Sheet Roll Forming Machine

    PPGI G550 G350 water tank rolled/curved Rolling Machine 45# Steel, Computer Corrugated Sheet Roll Forming Machine



    Machine list:

    1. Hydraulic De-coiler
    2. Hydraulic pre-cut device
    3. Single layer roll former
    4. Two sets of hydraulic punch & cutting device
    5. Run out table
    6. Smooth curving machine
    7. Siemens PLC and IOP/ touch screen, Schneider brand invertePPGI G550 G350 water tank rolled/curved Rolling Machine 45# Steel, Computer Corrugated Sheet Roll Forming Machine

    Description/Technical Parameter details of complete line:

    • 6TX1250mm Hydraulic Un-Coiler with coil car

    Hydraulic system to expand coil inner hole, Pump motor: 3.0KW

    Coil Inner-diameter= 510±30mm

    Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

    Taper wedge expand type

    Driving motor to turn the coil, 4KW, manual frequency speed control

    Other design such as snubber arm /support arm/coil car as per request

    • Hydraulic Pre-shearing e
    • Roll forming machine with cutting details as below table :
    Suitable roll forming materialColor steel sheet or galvanized steel sheet
    Thickness1.0-1.2mm
    Coil input width1250mm
    Carriage Frame designStand frame design
    Roll forming stages18 stages for example
    Material of roller

    45# steel, CNC lathes, Hard Chrome Coated

    Option : with roller heat treatment

    Shafts DiameterΦ95mm
    Main motor power15Kw with reducer
    Roll forming speed25m/min (Higher speed is available, depends on the specification required by the buyer)
    Hydraulic group power11Kw
    Material of cutterCr12, hear treatment/Cr12Mov, heat treatment
    Electric Voltage Standard415V/50Hz/3PH or as requirements
    Major Color of MachineRAL 5015(Blue) or as requirements
    • PLC Control System

    Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

    Cut-to-length tolerance≤±1mm

    Control Voltage 24V


    Post Smooth Curving Device

    There is pneumatic cylinder to hold the sheets before go enter the curving machine

    5.5KW AC driven motor to drive the sheets

    The product length is: 2870mm (fixed)

    The curving radius is: 1.72-7.31m, adjustable

    Servo motor to control the radius change of the smooth curving

    Siemens Servo motor power: 1.0KW

    The radius can be set from the PLC control cabinet

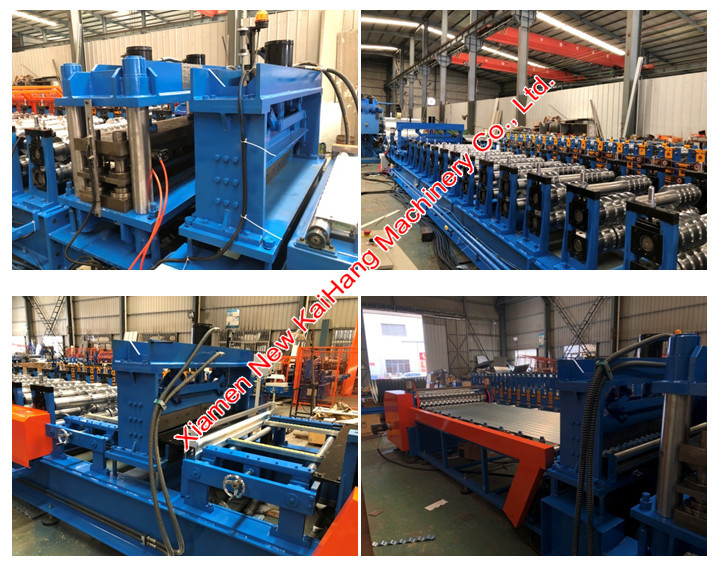

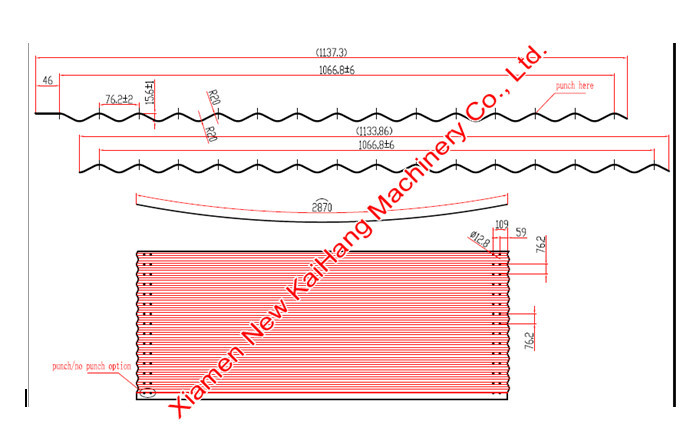

    Profile Drawing/Layout/Equipment reference pictures:


    PPGI G550 G350 water tank rolled/curved Rolling Machine 45# Steel, Computer Corrugated Sheet Roll Forming MachinePPGI G550 G350 water tank rolled/curved Rolling Machine 45# Steel, Computer Corrugated Sheet Roll Forming MachinePPGI G550 G350 water tank rolled/curved Rolling Machine 45# Steel, Computer Corrugated Sheet Roll Forming Machine
