0.4mm-0.6mm Galvanized Roof Fascia Roll Forming Machine PLC Control System, Full Automatic Fascia Rolling mills

Profile Drawing:

Layout:

Main Components

3TonX500mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Link-connect expanding system

Pump power=1.5KW

Load capacity=3 Ton; Coil Inner – diameter =451-530 mm

Coil outer-diameter=Max. 1500 mm

Coiler Width=Max. 500 mm

Feeding table

Feeding table with guide section

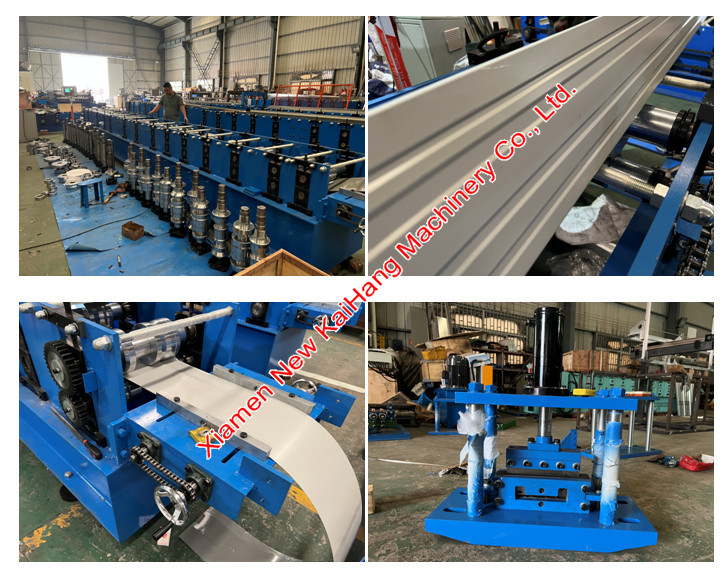

Roll Forming Machine

Feeding section with guide

Gear/Sprocket driving; 20 steps to form

Wall-plate-frame design, thickness of wall plate is 18mm

H 450 beam base frame

Rollers manufactured from 45#, CNC lathes, hard Chrome Coated

Shafts Diameter=ф75mm, Precision Machined

Main motor =5.5KW, Frequency speed control

Max. Line speed of roll former:Approx.15m/min

Fixed cover above the roll former included to avoid the hands go inside

Hydraulic Cutting Device

Stop to cut, Post cut, after cut-off, there is waste

Cutting tool material: Cr12, Heat treatment

Hydraulic Group, Pump motor =4KW

PLC Control System

Control the quantity & cutting length automatically

Combined with: PLC, Touch Screen (Siemens), Inverter (Shihlin),

Encoder (Omron), etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
