    Thickness 0.4mm-0.6mm High Speed Roll Former, Forming Machine, 60mpm speed auto size exchange control

    Ask Lasest Price
    Brand Name : NKH MACHINERY
    Model Number : U41-92
    Certification : CE/SONCAP/CSA
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5 UNITS/MONTH
    Delivery Time : 40 WORKING DAYS
    • Product Details
    • Company Profile

    Thickness 0.4mm-0.6mm High Speed Roll Former, Forming Machine, 60mpm speed auto size exchange control

    Thickness 0.4mm-0.6mm High Speed Roll Former, Forming Machine, 60mpm speed auto size exchange control

    Profile:

    All of our machine profile is customized, above profile is only for your reference.

    1. Coil width: TBC mm

    2. Thickness: 0.4-0.8mm


    profile:

    Thickness 0.4mm-0.6mm High Speed Roll Former, Forming Machine, 60mpm speed auto size exchange controlThickness 0.4mm-0.6mm High Speed Roll Former, Forming Machine, 60mpm speed auto size exchange control


    Layout:


    Hydraulic decoiler—Leveling—Punching—Roll Forming—Cutting—Out table


    Specifications:

    Item NO

    Description


    Offered specification

    1Roll Forming Machine

    C U shape


    2Material WidthTBC mm
    3Rolling Speed60m/min(including punching and cutting)
    4Rolling Thickness0.8mm for U shape
    5Control SystemPLC (Siemens) as list in the note
    6Un Coiler

    1.5 ton manual decoiler

    (depend on customer's requirement)

    7Leveling Station1 station
    9Punchingone set
    10Roller Stations17 stations
    11Roller Material

    CR12MOV, heat treatment

    12Shaft Material and DIA45mm, material is 45# forge steel
    13Maim Motor Power11kw
    14Hydraulic Station Power7.5kw
    15Hydraulic Pressure20-25Mpa
    16Cutting modeHydraulic non stop cutting
    17Material Of CuttingCr12Mov quenching 58-62℃
    18Structure Of The StationsGuide pillar
    19Tolerance6m+/-1mm
    20Electric Source

    220V, 60HZ,3 phase

    According to customer’s require


    21Way Of DriveBy gearbox
    22Color Of The MachineYellow and Grey

    The parts of machine

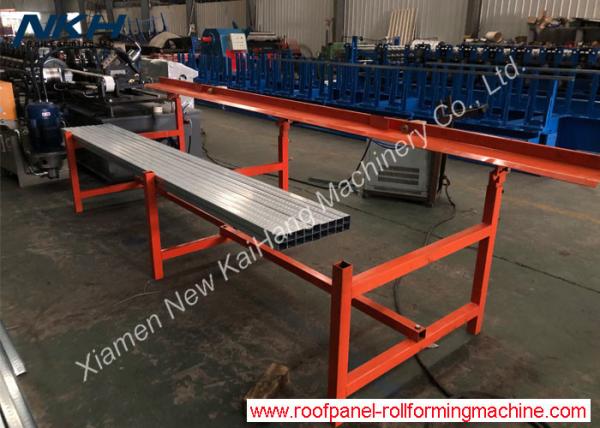

    • Hydraulic Uncoiled, Forming Machine (feeding, leveler, roll mill, cutting, punching, PLC computer, Hydraulic station, cutting), and simple run out shelves 2pcs, computer operation manual 1 pcs.
