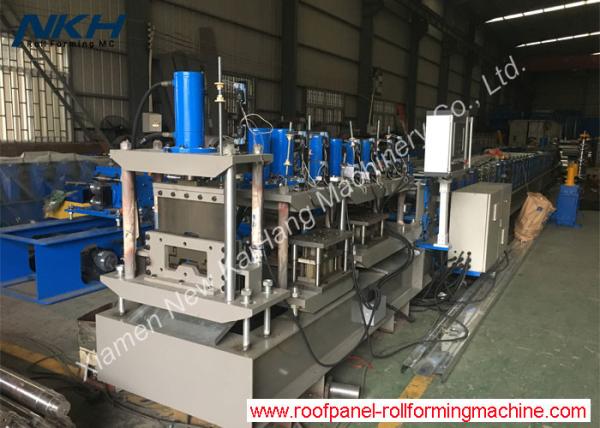

20m/Min CZ Purlin Roll Forming Machine Galvanized / Color Steel Sheet

CZ Purlin Roll Forming Machine Quick Detail:

1. Thickness : 1.5mm-3.0mm
2. Material : Galvanized sheets
3. Material weight : 5Mt
4. Coil inner diameter : 508mm
5. Driven way: by 22kw driven motor
6. Cutting way: by hydraulic power pack, pre punch, post cut
7. Cutting tolerance : ±1mm

CZ Purlin Roll Forming Machine Application:

Our Manufacturer is one of the leading suppliers in china about the C or Z section purline machine,

The CZ Purlin production can be used in Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works

Description/Technical Parameter details of complete line:

• 5TX600mm Hydraulic Un-coiler or manual de-coiler

You can adopt to :

Manual de-coiler

Hydraulic un-coiler

Hydraulic & Driven de-coiler

• Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

• Roll forming machine with cutting details as below table :

• PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Control voltage 24V

• Product Rack 4 meter long ,rolled type

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
