Cr12 Steel Guard Rail Roll Forming Machine With CE Standard , High Efficiency

Quick Detail:

1. Thickness : 0.8-1.2mm
2. Material : GI, 350Mpa
3. Input width : 174mm
   1. Material weight: 1.5MT cap.
   2. Driven way: by 11Kw driven motor
   3. Cutting way: stop to cut, there is waste after cut-off
   4. Cutting tolerance : ±1mm

Features:

Due to the heavy duty materials a rolling shutter door track roll forming machine usually bends, there are two types of transmission available for customers to choose: Chain-brackets transmission and Gear-box transmission.

Normaly drive by chain is enough to support the panel

Machine list:

1. 1.5MT*300mm manual un-coiler
2. Roll forming machine
3. Cooling system for each stage
4. Hydraulic cutting device
5. Run out table
6. PLC control cabinet

Description/Technical Parameter details of complete line:

• 1.5TX300mm Manual Un-Coiler or Driven de-coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter length rolled type

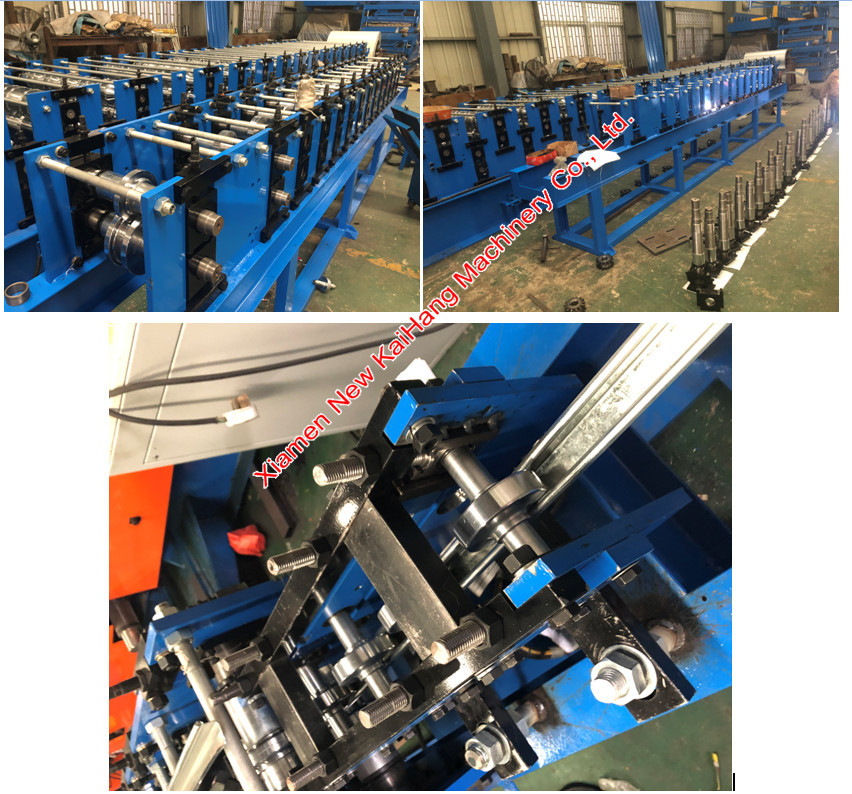

Profile Drawing/Layout/Equipment reference pictures:
